Product Specifications
| Frequency Band | VHF (30 MHz - 300 MHz) |
|---|---|
| Numeric Frequency Range | 134-184 |
| Connector Type | UHF |
| Connector Sex | FEMALE |
| Gain | 4.5 |
| Recommended Mounting Clamp | MAST |
| Wave pattern | 5/8 WAVE |

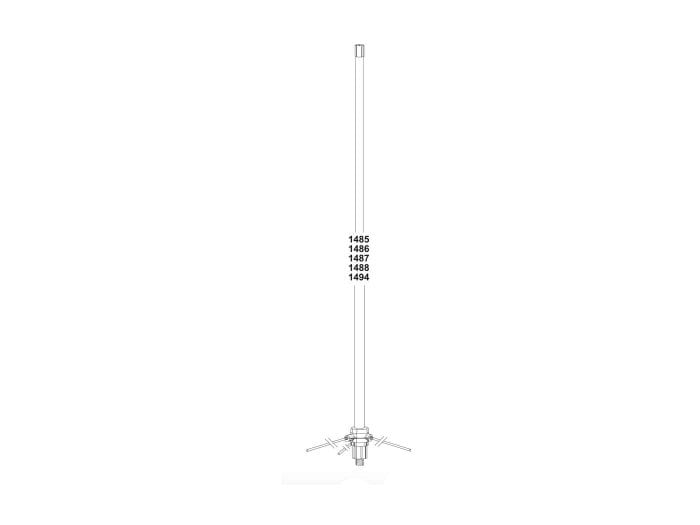

Omni Antenna 134-185 MHz 5/8 Wave 4.5dB
Fiberglass base antenna
Features
- High performance 200 watt power rating, low SWR &, broad banded
- The radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather
- DC ground construction allows static dissipation for low noise ratio and maximum lightning protection
- vertical polarization with 50 ohms impedance
Specs
- 134-184 MHz
- 5’7” tall, 4.5 dB
- 135 MPH
- Single section w 5/8 Wave
- 3 Elements
- 20 1/2” radial length
MSRP: $171.60
13 in stock (can be backordered)
13 in stock (can be backordered)
Description
Fiberglass base antenna
Features
- High performance 200 watt power rating, low SWR &, broad banded
- The radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather
- DC ground construction allows static dissipation for low noise ratio and maximum lightning protection
- vertical polarization with 50 ohms impedance
Specs
- 134-184 MHz
- 5’7” tall, 4.5 dB
- 135 MPH
- Single section w 5/8 Wave
- 3 Elements
- 20 1/2” radial length
